铺地材料防火测试方法汇总简介

铺地材料作为生活中常用的建筑及装饰装修材料,除了舒适美观性之外还需具备一定的安全性。下面是几种常见的铺地材料。

铺地材料防火测试方法汇总简介

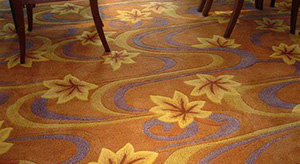

纺织地毯

铺地材料防火测试方法汇总简介

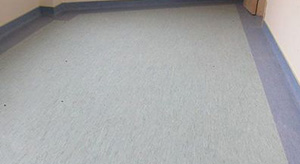

橡塑地板

铺地材料防火测试方法汇总简介

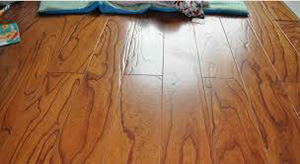

实木地板

铺地材料防火测试方法汇总简介

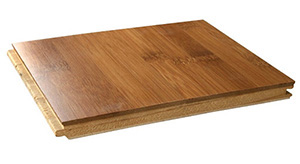

复合地板

防火性能作为安全性能当中比较重要一环,各国有针对性的设计了一些专门的防火检测方法。常规铺地材料类阻燃测试方法标准有:

测试方法 标准号 标准名称
辐射源法 GB/T 11785-2005 铺地材料的燃烧性能测定 辐射热源法(ISO 9239-1:2002 IDT)
EN ISO 9239-1:2010 Reaction to fire tests for floorings Part 1: Determination of the burning behaviour using a radiant heat source
AS ISO 9239.1-2003 (Reconfirmed 2016) Reaction to fire tests for flooring Part1: determination of the burning behaviour using a radiant heat source
ASTM E648-17a Standard test method for critical radiant flux of floor-covering systems using a radiant heat energy source
NFPA 253-2015 Standard method of test for critical radiant flux of floor covering systems using a radiant heat energy source
DIN 4102-14:1990 Fire behaviour of building materials and elements—Determination of the building behaviour of flooring systems using a radiant heat source
小药丸法 ASTM D2859-16 Standard Test Method for Ignition Characteristics of Finished Textile Floor Covering Materials
16 CFR 1630 Standard for the surface flammability of carpets and rugs
16 CFR 1631 Standard for the surface flammability of small carpet and rugs
ISO 6925:1982 Textile floor coverings- burning behaviour – tablet test at ambient temperature
GB/T 11049-2008 地毯燃烧性能 室温片剂试验方法(ISO 6925:1982 IDT)
BS 6307:1982 Method for Determination of the effects of a small source of ignition on textile floor coverings (methenamine tablet test)
热金属螺母法 BS 4790:1987+A1:1990+A2:1993 Method for Determination of the effects of a small source of ignition on textile floor coverings (hot metal nut method)
BS 5287-1988 Assessment and labelling of textile floor coverings tested to BS 4790
酒精棉布引燃试验 DIN 51960:1975 Testing of organic floor coverings (excluding textile floor coverings)—Testing of flammability

1、辐射热源法

代表方法:GB/T 11785 \ EN ISO 9239-1 \AS ISO 9239-1 \ ASTM E648 \ NFPA 253\ DIN 4102-14

适用样品:适用于各种铺地类材料,如纺织地毯、木地板、橡塑地板、复合地板及地板喷涂材料等等。

方法简介:在试验燃烧箱内,用T形燃烧器点燃水平放置着的铺地材料,其上方倾斜固定一面热辐射面板持续作用于试样表面。试验中观察样品火焰传播能力。传播距离越远,临界热辐射通量越小,试样的阻燃性能也就越差。另外有些试验也会要求附加测试记录烟道内的产烟情况。

性能要求:可参考各国建筑规范或者行业标准内相关要求。

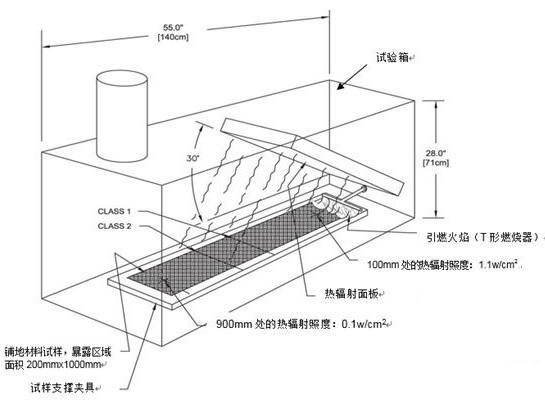

测试示意图:

铺地材料防火测试方法汇总简介


2、小药丸法

代表方法:GB/T 11049 \ ISO 6925 \ ASTM D2859 \ BS 6307 \ 16 CFR 1630 \ 16 CFR 1631

适用样品:适用于所有类型的织物地面覆盖物,不论其构造以及纤维组分。(GB/T 11049 \ ISO 6925 \ BS 6307) 16 CFR 1630尺寸大于1.83m (6ft) 且面积大于2.23m2 (24 sq.ft) 类地毯(可根据实际情况选择水洗)。 16 CFR 1631尺寸小于1.83m (6ft) 且面积大于2.23m2 (24 sq.ft) 类地毯(可根据实际情况选择水洗)。

方法简介:230±3mm正方形的试样水平放置,使用暴露面朝上。取一片小药丸平放试样中心,用点火器轻触药丸引燃。点燃的火焰或者任何蔓延的所有火焰燃烧至熄灭,或者有焰、无焰燃烧至金属板孔的任一边缘,试验即可停止。观察每块试样的最大损毁长度(mm)。重复试验至少8个试样。

试验要求:GB/T 11049 \ ISO 6925未作规定。

ASTM D2859 \ 16 CFR 1630 烧毁部分边缘距离金属框圆形内部边缘的间距不得小于25±0.5mm (1英寸)。

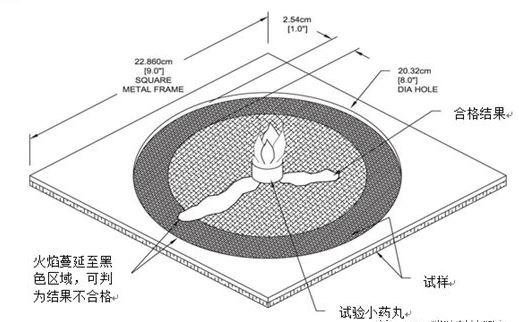

测试示意图:

铺地材料防火测试方法汇总简介


3、热金属螺母法(BS 4790)

适用样品:适用于所有织物类的铺地材料

方法简介:将温度达到900℃±20℃的灼热状态下的螺母放置水平铺放的试样上,接触30±2s。记录试样是否被引燃,或者引燃后的燃烧状况,重复试验3个试样。

试验要求:参考BS 5287可划分为:

Radius of affected area Information to be given on the label
≤35mm this floor covering has a low radius (up to 35 mm) of effects of ignition
35<X≤75mm this floor covering has a medium radius (over 35 mm up to 75 mm) of effects of ignition
>75mm this floor covering has a high radius (over 75 mm) of effects of ignition

备注:损毁半径不大于75mm即可被认为是满足要求

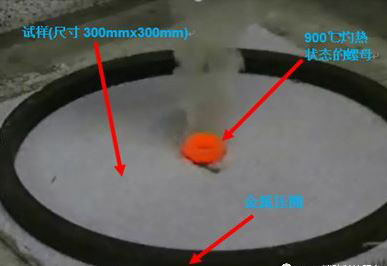

测试示意图:

铺地材料防火测试方法汇总简介


4、酒精棉布引燃试验(DIN 51960)

适用样品:有机类铺地材料(注:织物类除外)

方法简介:将样品水平铺在木板上,直径25mm的薄棉片(纤维布片)放置在样品中心位置。薄片均匀浇上2.5ml纯度为96%的乙醇并引燃。火焰熄灭后,观察测量最大的烧毁痕迹。注意样品变色情况不做考虑。重复测试5个试样。

结果评价:

Class 1---所有5个试样的烧毁痕迹都不大于50mm;

Class 2---一个及以上试样的烧毁痕迹超过50mm。

方法1适用的产品类型、产品领域最为广泛,具备一定的普及性,且要求铺地材料具备较强的阻燃性能;

方法2、3、4很类似,只是燃烧源采用的不太一样。但是,方法2、3针对织物类的易燃性铺地材料,要求试样具备一定的阻燃性能;方法4针对非织物类的有机类铺地材料;方法3,4较为生僻且年代久远,仅英、德国市场内销售的产品才会被要求采用。

赛德斯威拥有专业的阻燃测试技术团队,具备欧标、英标、美标、国标、澳标等多个国家和地区的阻燃测试能力,可提供测试咨询、标准解读、样品测试、报告解读、产品改善等一站式阻燃测试服务。
